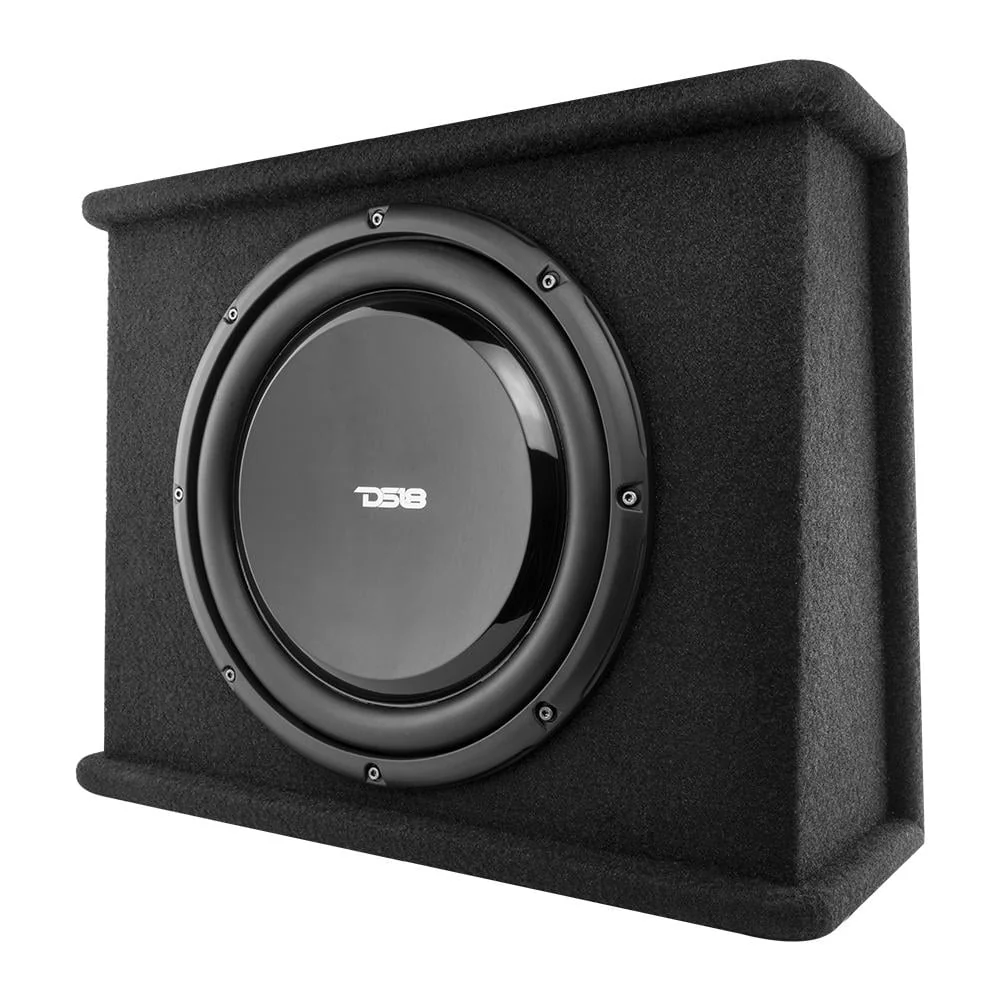

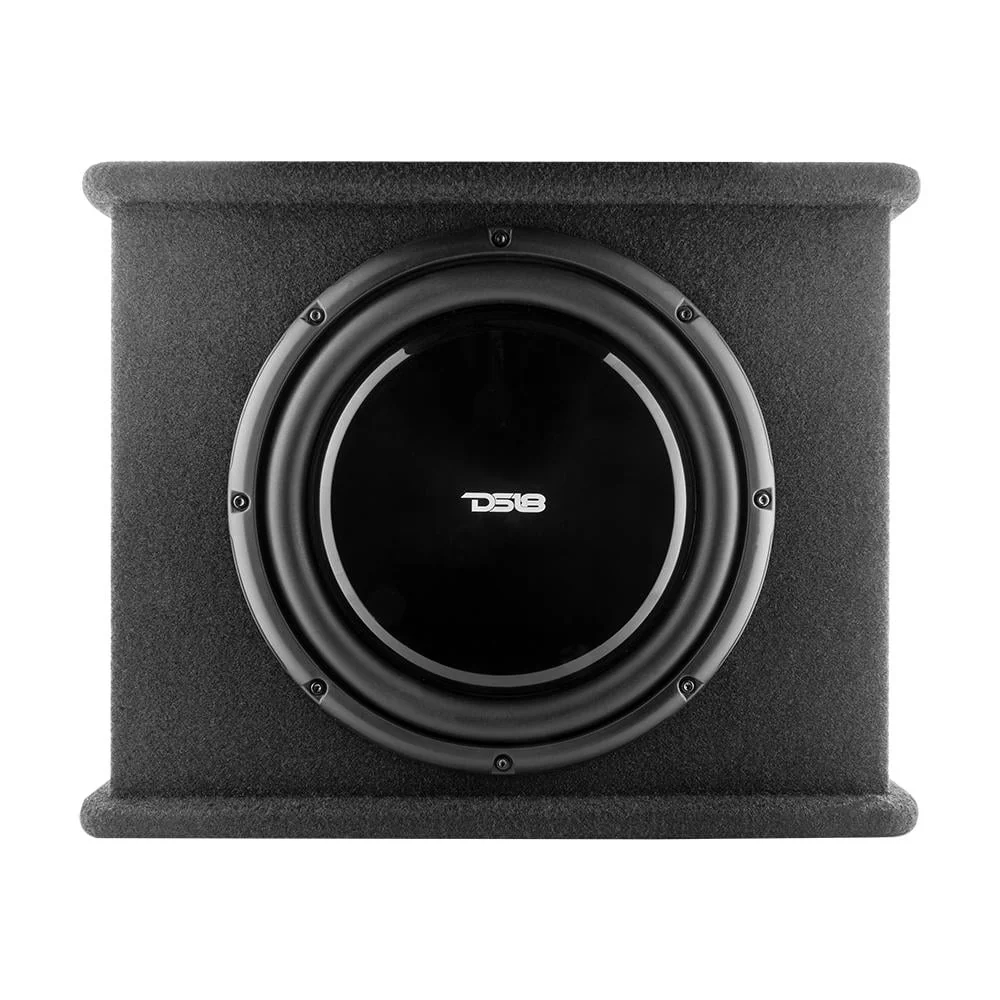

DS18 12″ Shallow Subwoofer Bass Package 700 Watts 2 Ohm with Built In Amplifier

Some audio enthusiasts do not have a lot of room for big subs, for example, in single cab trucks or small cars. Now we have a solution for people craving great bass but do not have much space for it! This DS18 SB12A is a slim 12 inch subwoofer in a sealed box that is powered by a powerful, built in 350w RMS, 700w MAX amplifier that is sure to get the bass thumping hard in the minimal space that you have available available in your vehicle. Only ” high for a wide variety of applications.

This Listing Includes:
(1) DS18 Subwoofer Bass Package SB12A

FEATURES:
-Strong slim 12 inch sub that will bring earth pounding bass where there is not much space
-Compact sealed box made of .6 inch MDF with included built in 350w RMS 700w max high power amplifier
-Easy to hook up and integrate with any system with the use of high level inputs or RCA jacks, whichever is easiest for you

BOX SPECIFICATIONS:
Internal Volume: 16L / 0.56ft3
Load Configuration: Parallel In
Box Type: Sealed Box
Box Material: 0.59″ MDF
Finish Material: Non-Woven fabric
(-3dB) Dropping Point: 45Hz

MEASUREMENTS:
Height: 14.96″ / 380mm
Width: 19.3″ / 490mm
Depth 1: 4.92″ / 125mm
Depth 2: 7.4″ / 188mm

SPECIFICATIONS:
Speaker Size: 12″ / 312mm
Total Impedance: 2 ohms
RMS Power Handling: 350W
MAX Power Handling: 700W
Sensitivity (1w/1m): 87dB
Frequency Response: 30-250Hz

MOTOR:
Voice Coil Diameter: 1.75″ / 44.43mm
Voice Coil Former Material: Aluminum
Winding Material: EISV
Cone Material: IPP
Surround Material: Rubber
Basket Material: SPCC
Magnet Material: Ferrite
Magnet Weight: 50 Oz

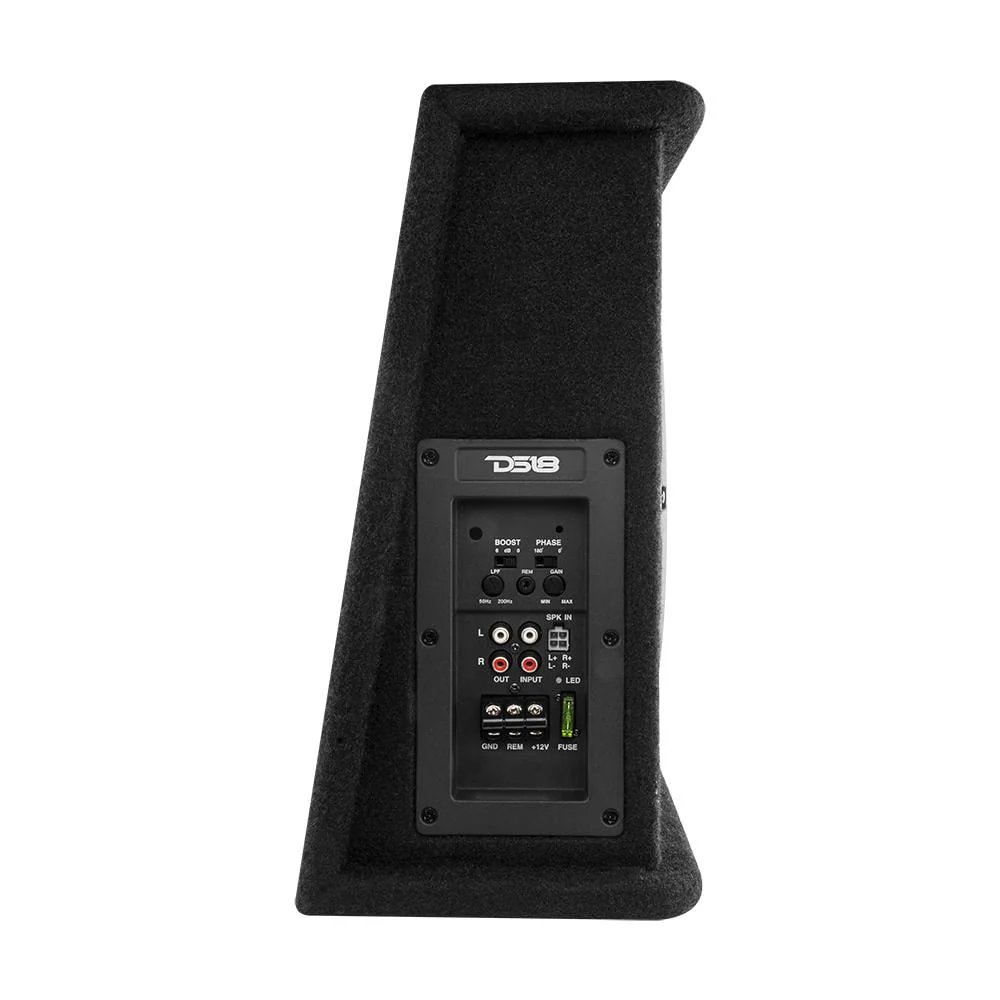

AMPLIFIER:
Amplifier Class: Digital
Amplifier Type: Monoblock Subwoofer
Number of Channels:1 CH
Minimum Impedance: 2 Ohms
Signal to Noise Ratio: 75 dB
Efficiency @ 4 ohms: 75%
Total Harmonic Distortion (T.H.D): 0.30%
Low Level Input Range: 0.1-0.6 V
High Level Input Range: Yes
Selectable X-Over: LPF Fixed
X-Over Filter Range: 51 – 200 Hz
Bass Boost Range: 0-6 dB
Bass Boost Frequency: 50Hz
Phase Selector: 0-180
Led Indicator: Power – Protection
Power Input Terminal Size: 8 GA
Fuse Size: 30 A

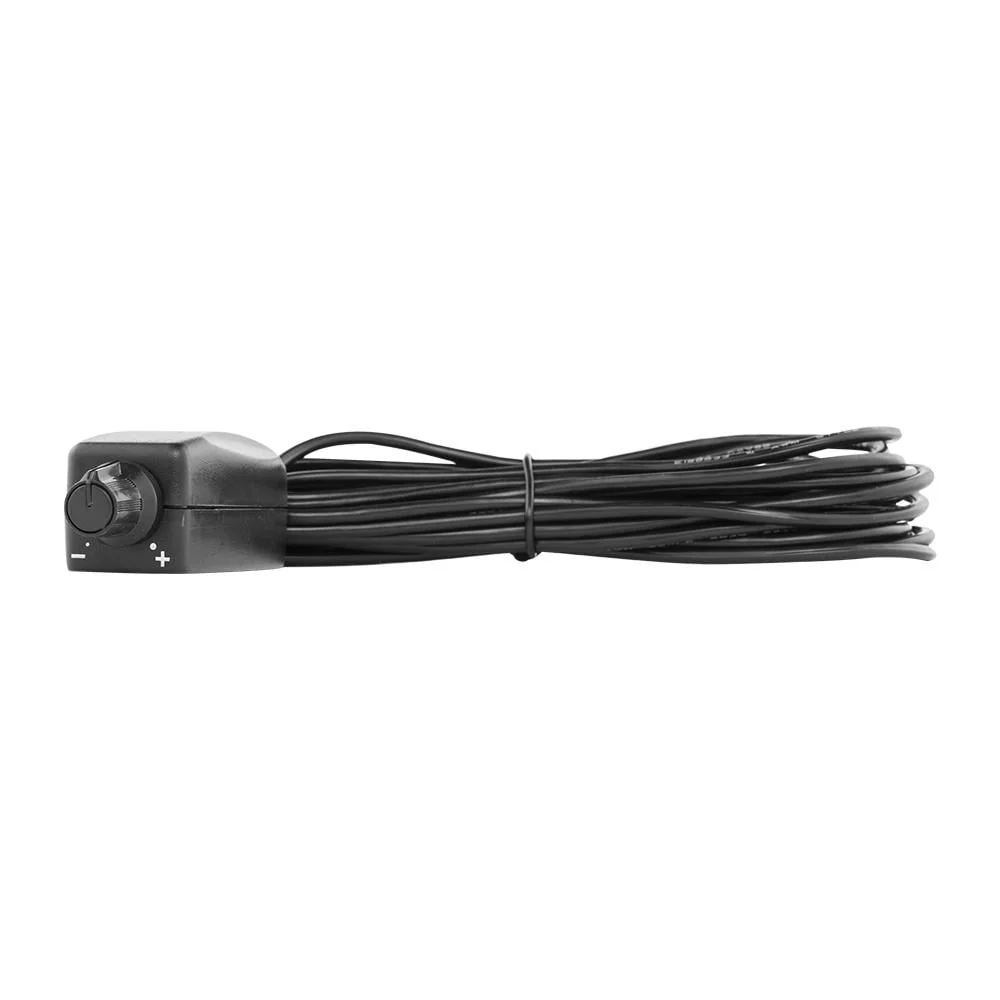

Remote Level Control: Yes
Thermal Protection: Yes (75C / 167F)
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
